| Place of Origin: | China |
| Brand Name: | Huaye |
| Certification: | ISO14000 |
| Minimum Order Quantity: | 50MT |
|---|---|
| Packaging Details: | Standard export packing |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000MT |
| Commodity: | Stainless Seamless Steel Pipes | Grade: | 200, 300, 400series, SAF2205/2507 |
|---|---|---|---|
| O.D: | 8~127mm | Length: | 6000mm Max |
| Highlight: | Stainless steel Pipe,Seamless Black tube |
||

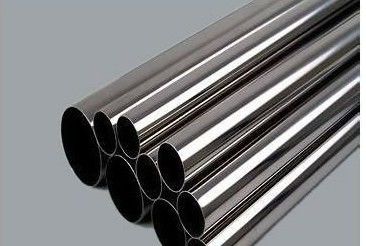

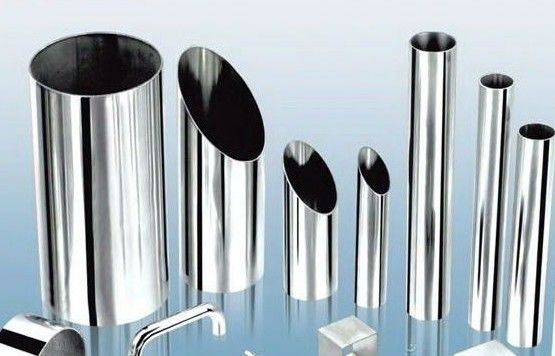

ASTM A312, A213, A269, 269M, GB, T14975, DIN2462 321 stainless Seamless Steel Pipes / Tube
321L stainless steel tube.
1.)Grade:200, 300, 400series, SAF2205/2507
2)O.D: 8~127mm
W.T: 0.25~3mm
Length: 6000mm max
321L stainless steel tube
1.stainless steel pipe/tube
2.standard:
ASTM A312/A312M, ASTM A213/213A, ASTM A269/269M
, GB/T14975-2002, GB/T14976-2002, GB/T13296-91
DIN2462, JIS G3463
3.material:
201(1Cr17Mn6Ni5N)
202(1Cr18Mn8Ni5N)
301(1Cr17Ni7)
302(1Cr18Ni)
304(0Cr18Ni9), SS304, TP304
304L(00Cr19Ni10), SS304L, TP304L
321(1Cr18Ni9Ti), SS321, TP321
316(0Cr17Ni12Mo2), SS316, TP316
316L(0Cr17Ni14Mo2), SS316L, TP316L
310S(0Cr25Ni20), SS310S, TP310S
4.OD:3-830mm
| Type | Main material | Operational Standard | Specification | Use |
| Alloy Pipe | P5/T5, STFA25 | GB5310-2008 | ∮16-426×2-90mm | Petroleum Chemical Industry, Electric Power, High Temperature Resistant, |
| P11, P12, STFA22 | GB9948-2006 | |||
| 13CrMo44, 12Cr1MoV. | ASTM A335/A335M | |||
| P22, 10CrMo910 | ASTM A213/A213M | |||
| T91/P91, P9/T9 | DIN17175-1979 | |||
| WB36 | JISG3467-1988 | |||
| JISG3458-1988 | ||||
| High Pressure | 20G, 12Cr1MoVG, 15CrMoG, ST45.8/III | GB5310-2008 | ∮16-824×2-65mm | Heat Resistant seamless Steel Pipe Used for High Pressure Boiler |
| Boiler Pipe | ASTM A106-1999 | |||
| DIN17175-1979 | ||||
| Petroleum | 20, 1Cr5Mo, 15CrMo | GB9948-2006 | ∮10-530×1.5-36mm | Petroleum Refinery Furnace Tube, Heating Exchange Pipe, seamless Pipe Used in Conduit |
| Cracking Pipe | ||||
| Pipe for chemical fertilizer facility | 20, 16Mn, 12Cr2Mo | GB6479-2000 | ∮25-426×6-40mm | Chemical Fertilizer Facility, Pipe |
| Low or Middle Pressure Boiler Pipe | 10, 20 | GB3087-2008 | ∮10-426×2-40mm | Low Pressure Boiler Heating Exchange, Boiling Water Pipe, Vehicle Vent-pipes |
| Fluid Pipe | 20, Q345 | GB/T8163-2008 | ∮8-610×1.5-40mm | Fluid Transportation |
| Structure Pipe | 20, 45, 40Cr, Q345 | GB/T8162-2008 | ∮6-610×1.5-40mm | In General Structure |
| Pipe of Pipelines | B, X42, X52 | API 5L-2000 | ∮40-325×3-40mm | Petroleum, Gas transportation |
| Hydraulic pressure Cylinder Pipe | 20, 45, 27SiMn | GB/T17396-1998 | ∮70-377×12-40mm | Hydraulic Pressure Bracket |
| Manage ship | 360, 410 | GB/T5312-1999 | ∮14-426×2-45mm | Make shipping to use and manage |
| Oil Pipe | J55, K55, N80, L80, P110 | API 5CT-2005 | ∮60-114×4-12mm | Transmission oil pipeline |
| Drill Pipe | E75, X95, G105, S135 | API 5D-2001 | ∮60-139×6-13mm | Oil well drilling |
| Casing Pipe | J55, K55, N80, L80, P110 | API 5CT-2005 | ∮114-273×4-13mm | Oil well wall lining |
contact: sales@wxhy.com.cn
| No. | HEAT NUMBERS | Size(mm) | Quantity | Packages | Pieces |
Chemical Composition(%) |
Physical Properties |
Final | ||||||
| ( MT) | C | Si | Mn | P | S | Tensile strength |
Enlong ation |
Yield Strength (N/mm2) |
||||||
| (Mpa) | (%) | |||||||||||||
| 1 | 0704126 | 406 x 32 thk x 5010mm | 0.17 | 0.33 | 1.29 | 0.014 | 0.007 | 530 | 35 | 375 | A | |||
